Mueble Alto 60 Para Grupo Filtrante 2 Puertas

MuebleAlto60ParaGrupoFiltrante2Puertas

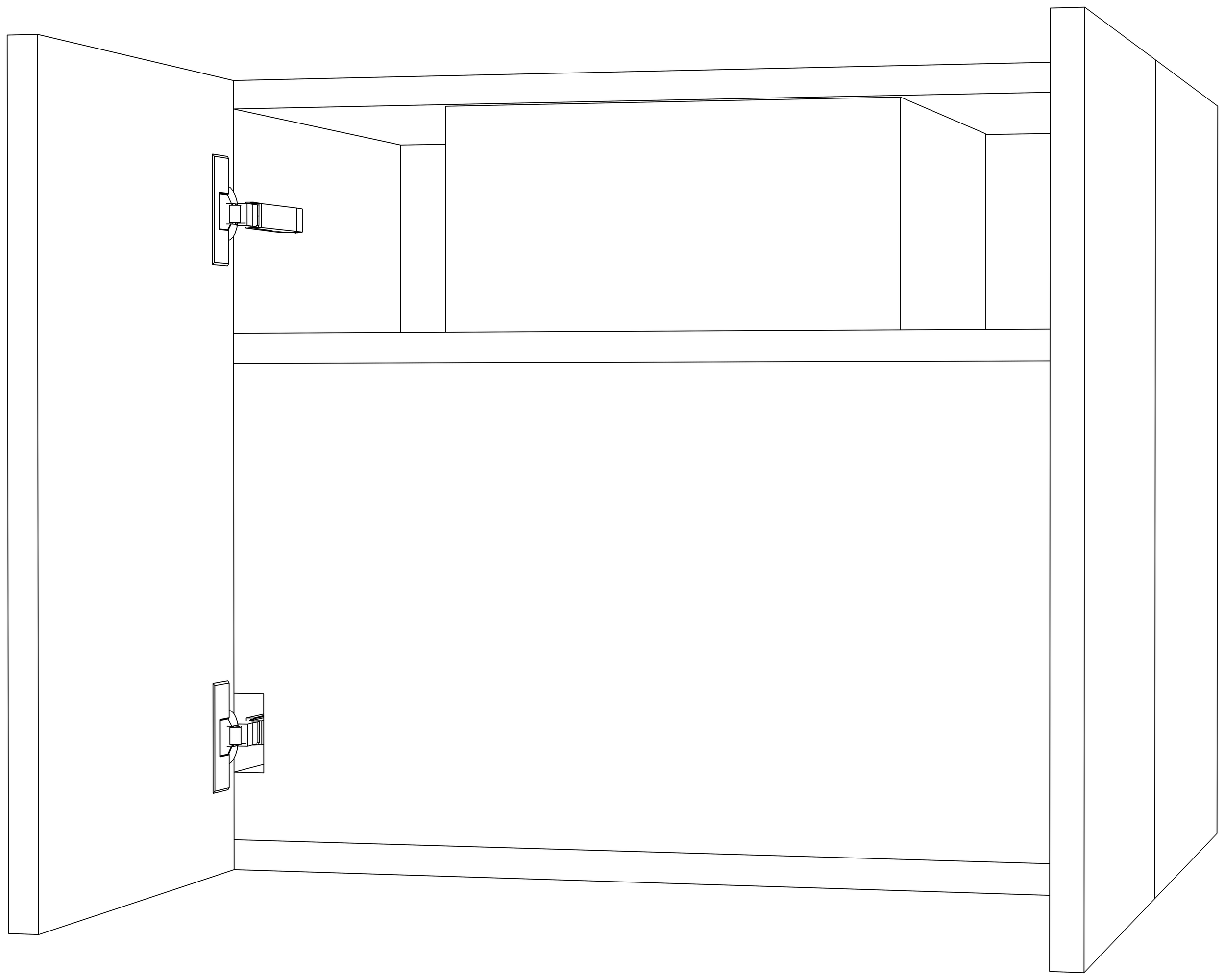

Dibujo técnico — Mueble Alto 60 Para Grupo Filtrante 2 Puertas
  • 011 FONDO SEPARADOR
  • 02TAPA-TUBO INTERIOR DESMONTABLE IGUAL MODELO ARMAZÓN.
  • 03NO INCLUYE BALDA
  • 04TAPA GRUPO DESMONTABLE IGUAL MODELO ARMAZÓN.
  • 05HUECO POR DEFECTO PARA GRUPO H 34 CM. HUECO VARIABLE SEGUN MODELO
  • 06COLGADORES MUEBLE ALTO
