Mueble Alto 50 Para Grupo Filtrante 2 Puertas

MuebleAlto50ParaGrupoFiltrante2Puertas

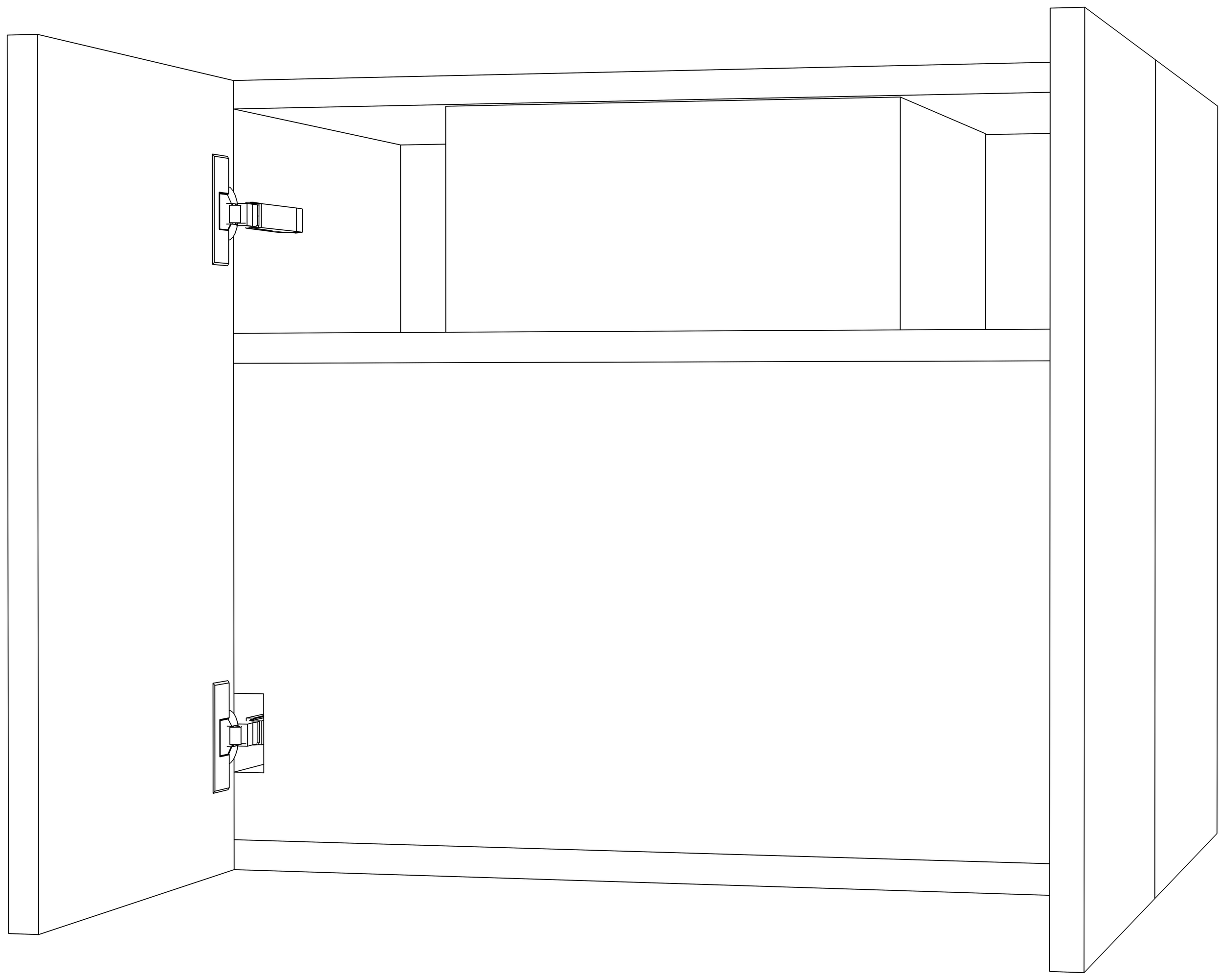

Dibujo técnico — Mueble Alto 50 Para Grupo Filtrante 2 Puertas
  • 011 FONDO SEPARADOR
  • 02NO INCLUYE BALDA
  • 03TAPA-TUBO INTERIOR DESMONTABLE IGUAL MODELO ARMAZÓN.
  • 04TAPA GRUPO DESMONTABLE IGUAL MODELO ARMAZÓN.
  • 05HUECO POR DEFECTO PARA GRUPO H 34 CM. VARIABLE SEGUN MODELO
  • 06COLGADORES MUEBLE ALTO
